Clearance Ex-retnal - Rugie Carry-On Monitor (NSW)

Description

• Signal System
  NTSC
  PAL
•
  Video Format
  480i 59.94
  480i/p 60
  576i/p 50
  800 x 600p 60
  1024 x 768p 60
  1280 x 768p 60
  1280 x 800p 60
  1280 x 1024p 60
  1140 x 1050p 60
  1680 x 1050p 60
  1600 x 1200p 60
  1920 x 1200p 60
  720p 24/25/30/50/60
  1080i 50/60
  1080PsF 24/30 1080p 24/25/30/50/60
•
  LCD Size
  20"
•
  Resolution
  1600 x 900
•
  Brightness
  300 nit
•
  Contrast Ratio
  1000:1
•
  Aspect Ratio
  16:9
  4:3
•
  Viewing Angle
  H: 178°
  V: 178°
•
  Pixel Pitch (HxV)
  0.2766 x 0.2766 mm
•
  Response Time
  8 ms
•

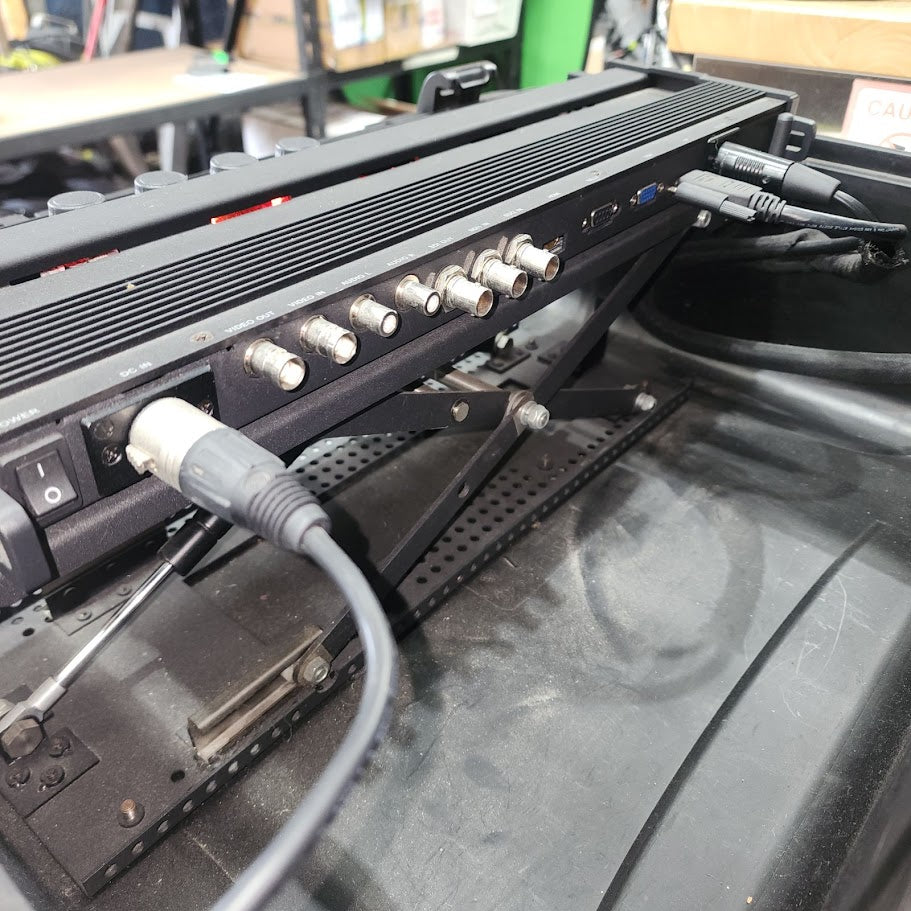

  Input and Output Connectors
  Video Input
  Composite: 1 x BNCDVI: 1 x DVI
  SD/HD-SDI: 2 x BNC
  VGA: 1 x D-sub 15
  HDMI: 1 x HDMI
• Video Output
  Composite: 1 x BNC loop through with auto termination
  SD/HD-SDI: 1 x BNC
• Analog Audio Input
  1 x RCA (dual channel)
• Analog Audio Output
  1 x 3.5mm
•
  Speaker
  2 x 5W 8Ω
•
  Tally
  Yes
•
  Power Connector
  1 x XLR 4-pin male
•
  Input Voltage
  12VDC
•
  Power Consumption
  30 W
•
  Power Supply
  Input: 100 to 240VAC 50/60 Hz
•
  Output: 12VDC
•
  Dimensions
  Case: 21.7 x 16.9 x 8.4" (550 x 430 x 213.8 mm)
•
  Weight
  26.5 lb(12 kg)

Whats in the Box

Contact Us for more Info
