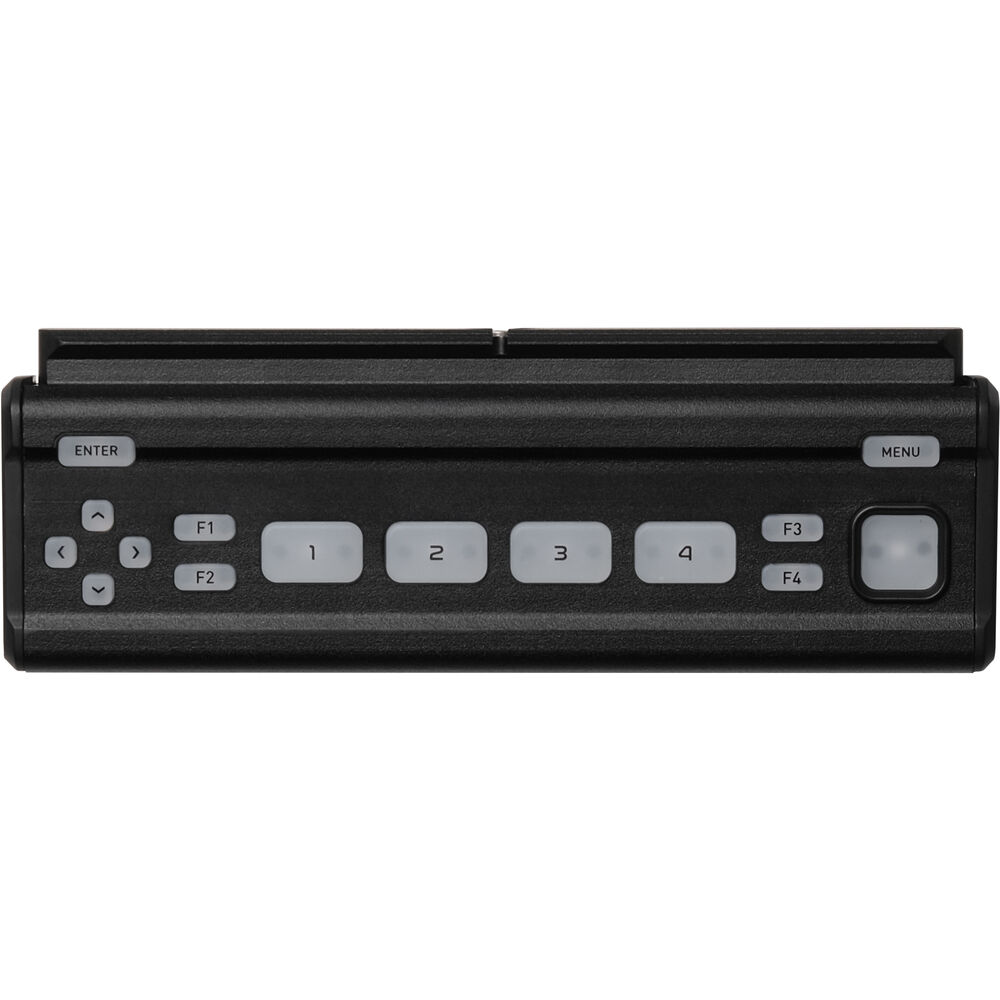

The Button Bar is a compact remote control unit that gives you access to the Atomos NEON monitor/recorder functions. It features tactile buttons with adjustable backlight levels and lets you access and control scopes, assist tools, frame guides, LUT previews, and more. With dedicated buttons for record and playback, you can perform functions such as jump into the last take to review the shot, or go frame by frame, or loop the entire clip. DITs can use the Button Bar in combination with the Atomos NEON AtomRemote app for iOS or macOS to define and set the colour pipeline and project settings.

The Button Bar connects to the NEON monitor over an included 2.5mm DC cable for both control and power, so no additional power source is required. Optional longer cables with a LANC connection can be used to extend the distance between the two devices. The Button Bar can be set on a desktop or mounted into your setup via built-in anti-twist 3/8"-16 and 1/4"-20 threads or a NATO rail that runs along the full length of the device.

Rec Button
Start / stop / jump to record
Play
Enter playback of last recorded clip
Next clip
Previous clip
Play / pause
10x forward
10x back
Step frame forward
Step frame back
Loop
F1: Luma Waveform On / Off
Adjust opacity
Adjust transparency
Adjust size / position
Adjust transparency of WFM
Adjust size / position of WFM
F1: RGB Parade Waveform On / Off
Adjust opacity
Adjust transparency
Adjust size / position
F1: Vectorscope On / Off
Adjust opacity
Adjust transparency
Adjust size / position
F2: Focus Peaking On / Off
Adjust color
Adjust intensity
Adjust style
F2: Zebra
Adjust threshold
F2: False Color
On / off
F2: Zoom
1:1 pixel
2 x
F3: Turn LUT On / Off
LUT 1 - 8
Right arrow > next LUT slots
Left arrow < previous LUT slots
F4: Frame Guide On / Off
Next frame guide
Previous frame guide
F4: Safe Area On / Off
Action safe
Action and title safe
F4: Anamorphic De-squeeze On / Off
Next de-squeeze option
Previous de-squeeze option
F4: Blue Only
On / Off
