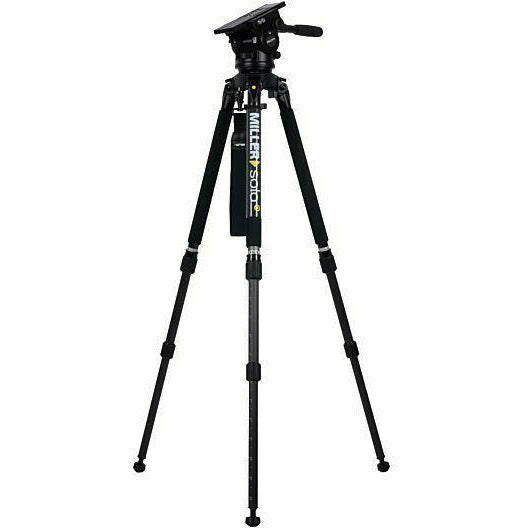

Miller 3030 ArrowX 1 (1070) Solo-Q 100 2-St Carbon Fibre Tripod (2515) Pan Handle (696) Strap (1520) Softcase (3502)
- Compact, lightweight and versatile.
- 5 selectable positions of fluid pan and tilt drag + 0.
- 16 position CB Pluscounterbalance system.
- Perfect for payloads to 0-16.0kg (0-35.3lbs).
- Integrated 100mm bowl.
- 2-stage rapid leg lock extension.
- Q-Lock for rapid set-up and storage.
- Lightweight carbon fibre legs.
- Comes with 2-stage tripod bag.
- 3-year warranty.
The 3030 Carbon Fibre, Solo-Q 100, 2-stage Arrowx 1 system, is designed for speed of setup, high level of stability and flexibility of payloads, The 1505 spreader less three-stage tripod, included in this system provides the ultimate range of heights, speed of set up and works perfectly on all terrains.

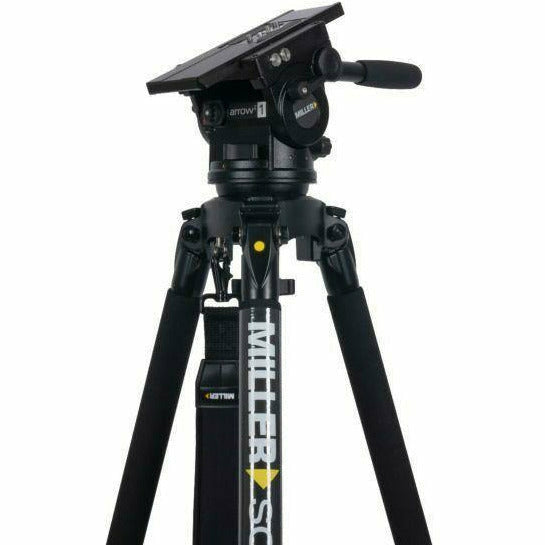

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 1 delivers the flexibility, speed of set up and accuracy of the shot, professionals expect and demand.
0-16.0kg (0-35.3lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 1 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.
The Arrowx 1 is matched with the 2 stage Solo-Q (carbon fibre) tripod that results in a range-topping height range of 404-1801mm (15.9-70.9"), all-terrain versatility in the lightest Arrowx system package.
| Payload Range | 0-16.0kg (0-35.3lbs) |
| Weight | 6.2kg (13.6lbs) |
| Height Range | 404-1801mm (15.9-70.9") |
| Transport Length | 862mm (33.9”) |
| Counterbalance Positions | 16 selectable positions |
| Pan Tilt Drag | 7 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | +90° / -75° |
| Pan Range | 360° |
| Camera Platform | Quick-release camera plate (Euro) |
| Sliding Range | 120mm (4.7”) |
| Mounting Base | Ø100mm (3.9") ball levelling |
| Height Above Bowl | 162mm (6.4") |
| Illuminated Controls | Bubble level, pan-tilt drag controls |
| Pan Handle | Telescopic 390-590mm (15.4-23.2") |
| Temperature Range | -40° to +65°C (-40° to +150°F) |
| Leg Extension | 2-stage telescopic |
| Lock Type | Concentric Rapid lock & Q-Lock |
| Leg Material | Carbon fibre |
| Components | |
| 1070 | Arrowx 1 fluid head |
|---|---|
| 2515 | Solo-Q 100 2-stage tripod (carbon fibre) |
| 696 | Pan handle - telescopic with clamp |
| 1520 | Solo-Q shoulder strap (Aircell) |

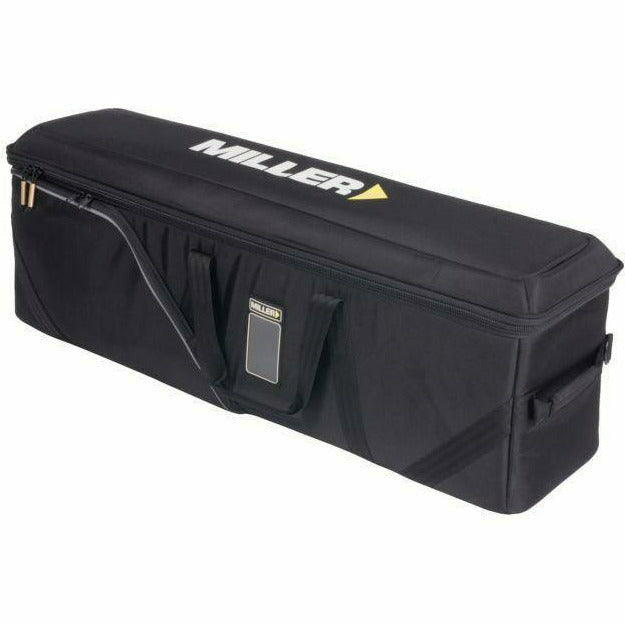

| 3502 | Arrowx soft case 2-stage |
