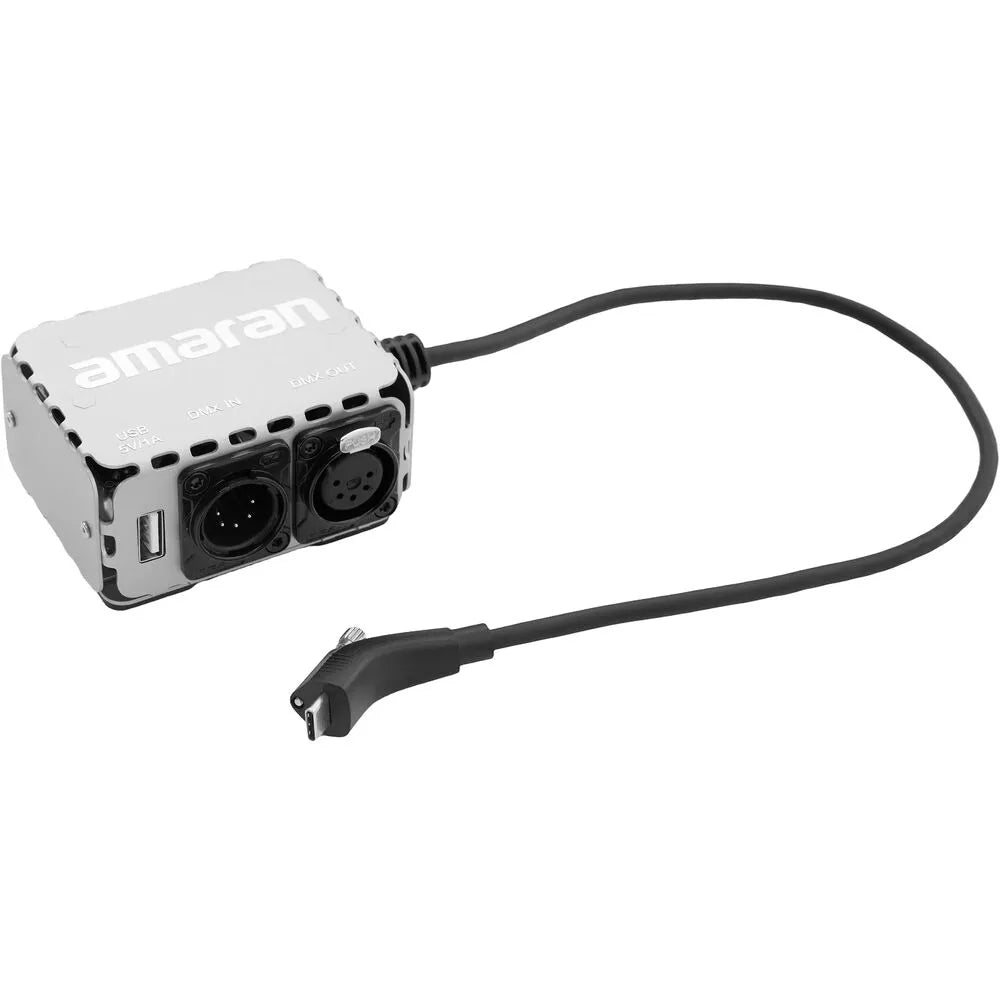

Amaran USB-C To 5-Pin DMX In & Out Adapter For Ray 360/660

amaran USB-C to 5-Pin DMX In & Out Adapter — Redefining the Professional Standard

The amaran USB-C to 5-Pin DMX In & Out Adapter is the definitive control interface that elevates your high-output lighting fixtures into a broadcast-ready studio universe with zero latency and flawless, hardware-level command.

Engineered for Elite Studios, Trusted by Industry Leaders

In high-stakes commercial environments and demanding closed-set film productions, lighting control demands absolute immediacy and bulletproof reliability. The amaran USB-C to 5-Pin DMX In & Out Adapter bridges the gap between state-of-the-art monolight illumination and industry-standard lighting consoles. This rugged expansion module transforms high-output Ray 360c and Ray 660c fixtures into full-fledged DMX-capable assets, allowing cinematographers and lighting directors to integrate them seamlessly into complex networks. By establishing a direct, wired pipeline, this device eliminates the unpredictable latencies of wireless signals, ensuring every cue triggers precisely on time.

Engineered to withstand the relentless pace of elite studio workflows, the adapter features a specialized screw-locking USB-C male connector that anchors firmly into the light fixture, eliminating the risk of accidental dropouts or signal loss during high-speed crane movements or overhead rigging. Additionally, the integration of a dedicated 5V/1A USB-A port provides a seamless avenue for local firmware updates, ensuring that your lighting ecosystem remains current with the latest performance architectures without ever leaving the grid. Its durable, lightweight metal construction is complemented by versatile mounting options, including an integrated 1/4"-20 threaded screw mount and robust hook-and-loop straps, enabling rock-solid placement on yokes, stands, or hardware arrays.

With full support for the standard DMX512 protocol across 512 channels of wired 8-bit control, this adapter unlocks the true potential of the OmniColor light engine found in the Ray series. Elite professionals can now program intricate, synchronized multi-light sequences, maintain absolute color consistency, and automate repeatable lighting effects with surgical precision. From episodic television to masterclass commercial sets, this sophisticated integration tool provides the ultimate foundation for scalable, secure, and automated lighting design, delivering the uncompromising performance that top-tier studio heads demand.

Uncompromised Technical Specifications

• Product Compatibility: Engineered specifically for the amaran Ray 360c and Ray 660c full-color LED monolights

• Control Protocol: Industry-standard DMX512 compliance

• Bit Depth: Wired 8-Bit DMX512 control for precise, high-fidelity dimming and color mapping

• Channel Capacity: Full single-universe support spanning up to 512 DMX channels

• Input Interface: 1x 5-Pin XLR Male DMX Input

• Output Interfaces: 1x 5-Pin XLR Female DMX Loop-Through Output; 1x USB-C Screw-Locking Male Output

• Firmware Maintenance: Integrated 1x USB-A Port (5V/1A) for direct firmware deployment via external flash drive

• Mounting Integration: 1x Built-in 1/4"-20 Threaded Screw Mount; heavy-duty Hook-and-Loop fastening straps included

• Chassis Construction: Premium, ruggedized metal housing built for harsh closed-set environments

• Physical Dimensions: 6.8 x 5.2 x 2.6 inches / 17.2 x 13.2 x 6.7 cm

• Net Weight: 8.5 oz / 240 g

Professional Integration FAQ

How does this adapter guarantee data integrity and prevent signal loss during high-intensity or motion-heavy studio setups?

The adapter is engineered with a high-retention, integrated screw-locking USB-C connector that mechanically secures to the fixture's chassis, completely neutralizing the risk of physical disconnection or data interruption during rapid arm sweeps, crane pans, or vibration-heavy overhead rigging.

Can this unit be incorporated into a standard daisy-chained DMX universe alongside other legacy cinematic fixtures?

Yes, featuring a dedicated 5-pin XLR Male Input and a 5-pin XLR Female Output loop-through, the adapter allows the Ray 360c or 660c to function flawlessly as an inline node within a traditional, daisy-chained DMX512 network, utilizing 8-bit resolution across all 512 channels.

How is firmware managed on this interface to ensure compatibility with evolving studio command protocols?

The device features an independent 5V/1A USB-A port designed exclusively for hardware updates, allowing operators to execute local firmware uploads directly from a flash drive on set without requiring internet access or central system reconfigurations.

What mounting provisions are available to keep the adapter secure and out of the way on tightly packed lighting grids?

The interface provides dual mounting solutions: an integrated 1/4"-20 threaded screw for fixed architectural placement on brackets, and heavy-duty hook-and-loop straps to rapidly secure the chassis directly to a stand, yoke, or the fixture's handle.
