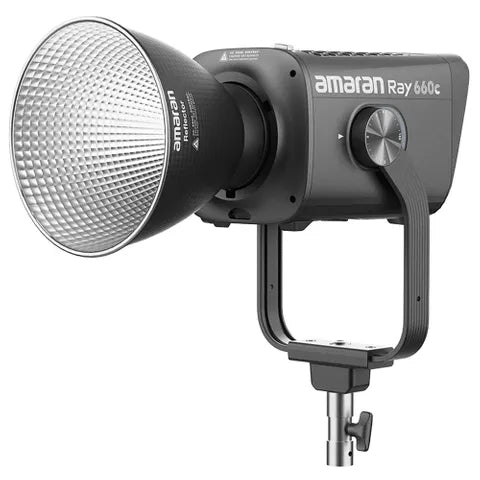

Amaran Ray 660C RGB Bowens Mount LED Light

amaran Ray 660c RGB Bowens Mount LED Light — Redefining the Professional Standard

The amaran Ray 660c stands as the definitive, high-output full-color cinematic powerhouse designed to unleash absolute creative control and flawless illumination across the most demanding studio sets.

Engineered for Elite Studios, Trusted by Industry Leaders

The landscape of high-end cinematography demands tools that refuse to compromise on power, fidelity, or structural endurance. The amaran Ray 660c RGB Bowens Mount LED Light shatters traditional lighting limitations by delivering an astonishing 660 watts of full-color point-source output. Born from the uncompromising pressures of rapid commercial sets and elite studio grids, this advanced fixture removes every barrier between a visionary Director of Photography and the perfect frame. Its streamlined monolight architecture incorporates the entire power delivery network directly within the lamp head, permanently banishing bulky external ballasts, heavy floor clutter, and prolonged setup times.

At the core of this engineering marvel lies the revolutionary OmniColor light engine, a quantum leap in full-spectrum color science. By fundamentally expanding the red and blue spectrums, the Ray 660c achieves an ultra-wide, immaculate color temperature range stretching from a warm 1,800K to a piercing 20,000K in CCT+ mode. This unparalleled spectral breadth ensures immaculate white balance, flawless green-magenta correction, and infinitely nuanced skin tone rendition that translates seamlessly to high-end digital cinema sensors. Whether flooding an expansive soundstage with 91,600 lux of crisp daylight or carving moody, saturated hues across a closed set, its performance remains beautifully consistent and devastatingly precise.

Rigorous studio environments push equipment to physical extremes, which is why the Ray 660c is encased in an elite, weather-hardened chassis featuring IP54 dust and splash resistance. Its internal thermal architecture is engineered for continuous, heavy-duty production cycles, utilizing a whisper-quiet active cooling system that caps fan acoustics at a mere 28 dBA—ensuring pristine sound acquisition even when positioned overhead. From high-speed practical effects to complex, multi-fixture console programming, this system integrates effortlessly into prestigious workflows, offering the absolute reliability that world-class production houses demand.

Uncompromised Technical Specifications

• Maximum Power Output: 660W COB LED Point-Source

• Maximum System Power Consumption: 750W

• Color Engine Architecture: OmniColor Full-Spectrum Light Chipset

• Luminous Flux: 45,904 Lumens

• Photometric Intensity (Bare Light): Up to 38,500 lux @ 1 meter (4,300K)

• Photometric Intensity (With Included Reflector): Up to 91,600 lux @ 1 meter (4,300K) / 90,400 lux @ 1 meter (5,600K)

• Standard Color Temperature Range: 2,300K to 10,000K

• Expanded Color Temperature Range (CCT+): 1,800K to 20,000K

• Color Rendition Metrics: CRI 95+, TLCI 95+

• Television & Film Quality Standards: TM-30 Rf 94 / TM-30 Rg 100

• Spectral Similarity Index (SSI): Tungsten: 87 / D56: 80

• Dimming Functionality: 0% to 100% Stepless, Precision Digital Dimming

• Environmental Protection Rating: Certified IP54 Dust and Water-Splash Resistant

• Thermal Management Architecture: Active Fan Cooling (Smart/Silent Modes) with a maximum noise threshold of 28 dBA

• Modifier System Integration: Full-Size Metal Bowens S-Mount

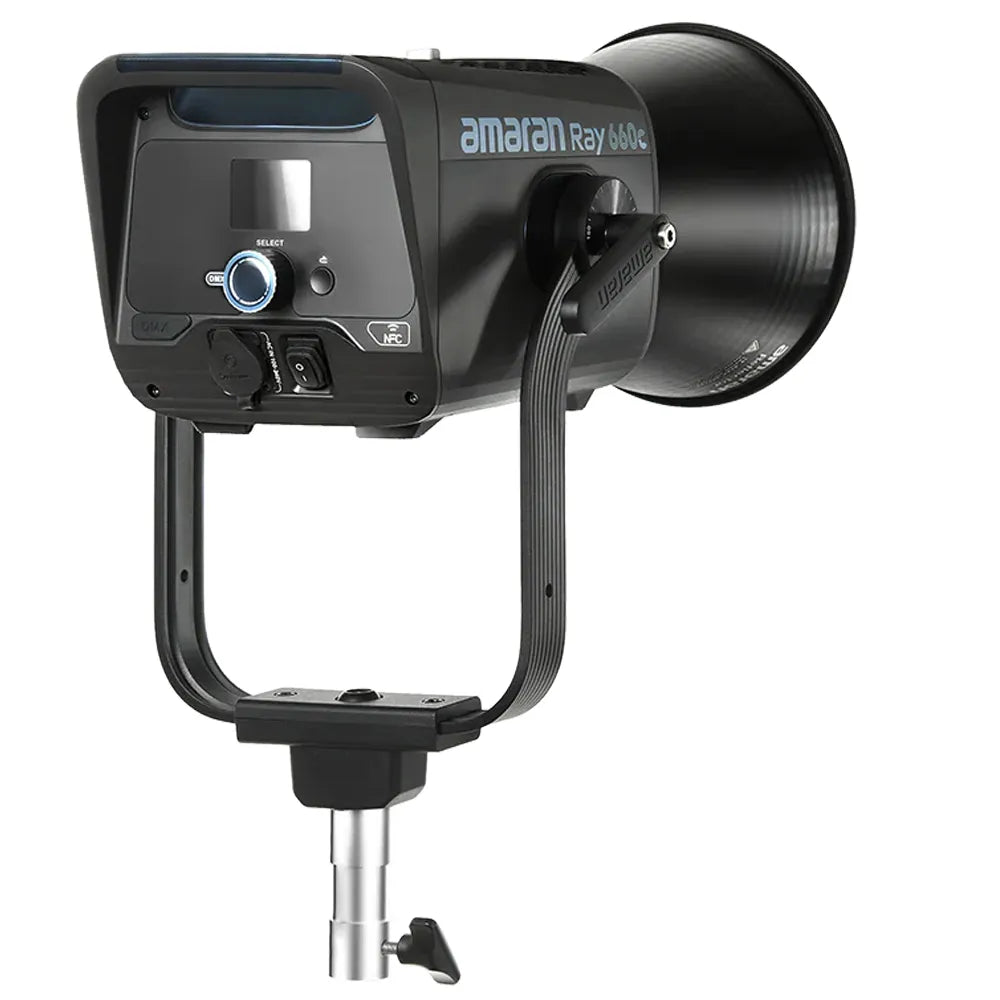

• Onboard Interface & Controls: High-Resolution TFT LCD Screen with Tactile FlowTurn Control Knob

• Wireless Connectivity Protocols: Integrated Near-Field Communication (NFC) one-tap pairing with long-range Bluetooth app control (up to 80 meters)

• Console Control Integration: Digital Multiplex (DMX) compatibility via specialized USB-C interface

• Chassis Rigging & Support: Heavy-Duty Manually-Operated Yoke featuring a Dual Junior/Baby Pin Receiver (1-1/8" Stud with 5/8" Receiver) and integrated safety chain anchor

• Power Input System: Universal AC 100V to 240V (50/60 Hz) via a single 5-meter heavy-gauge locking power cable

Professional Integration FAQ

How does the internal power architecture impact rapid deployment on high-stakes closed sets?

Engineered with the entire power supply directly inside the lamp head, this fixture completely eliminates external ballasts and heavy cable routing, allowing operators to rig, plug, and strike setups instantly with a single AC line.

What specific console protocols can a Gaffer or Lighting Programmer leverage to synchronize this fixture into a complex lighting grid?

The fixture supports professional console integration via a dedicated USB-C port for seamless DMX control, operating alongside advanced onboard FlowTurn navigation and high-speed remote Bluetooth app connectivity.

How does the fixture ensure pure, uncompromised color fidelity across extreme color temperatures during high-frame-rate filming?

Driven by the advanced OmniColor engine, the fixture delivers a spectacular CRI and TLCI rating of 95+ across its expanded 1,800K–20,000K range, paired with high-speed operational modes to maintain perfect color stability without flicker.

Can this lighting system withstand punishing environmental elements on remote location shoots?

Built with a certified IP54 dust and splash-resistant housing, the fixture safeguards its premium electronics against adverse weather while maintaining whisper-quiet, 28 dBA active thermal control for flawless audio capture.
