Amaran Mini Fresnel & Barndoor For Ray 60/120

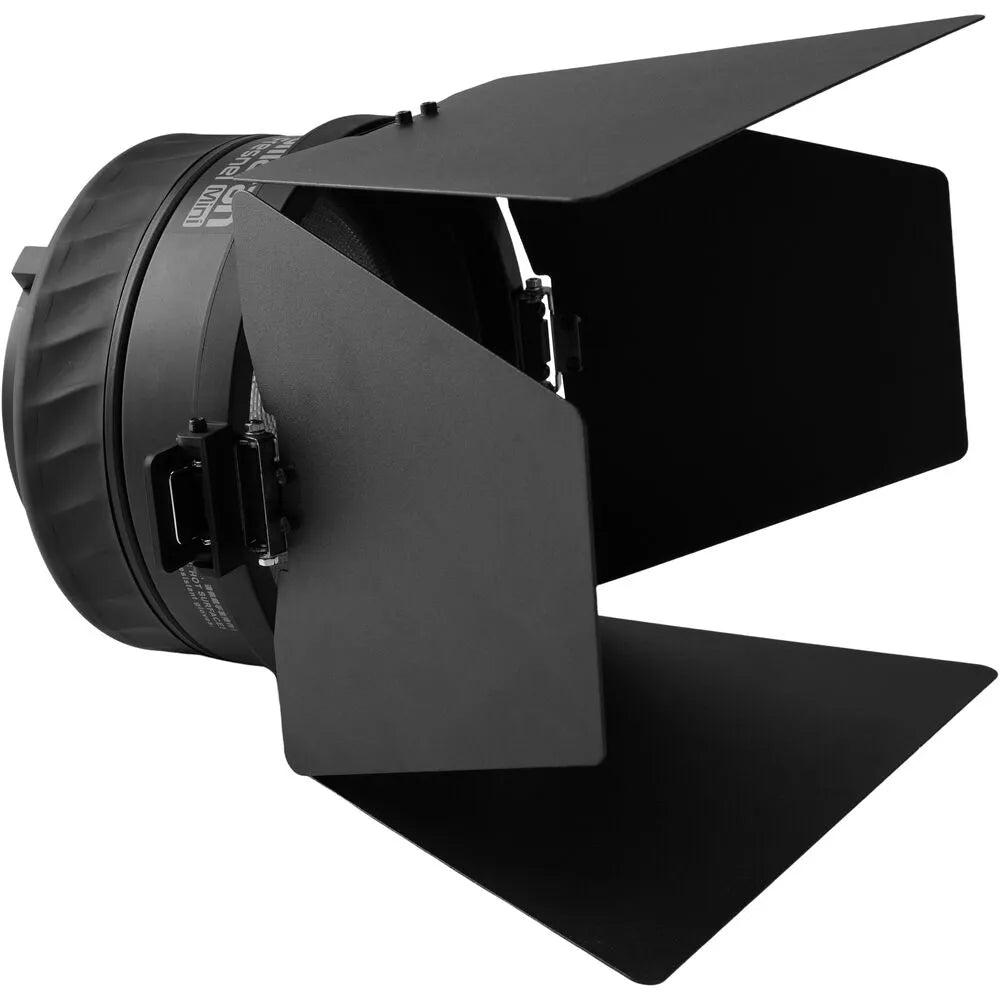

amaran Mini Fresnel & Barndoor Kit for Ray 60c & 120c — Redefining the Professional Standard

The amaran Mini Fresnel & Barndoor Kit for Ray 60c & 120c stands as the absolute pinnacle choice for high-end productions, transforming compact lighting architectures into high-intensity, razor-sharp cinematic instruments.

Engineered for Elite Studios, Trusted by Industry Leaders

Modern, closed-set studio environments and fast-paced commercial sets place brutal, uncompromising demands on lighting gear, where physical space must be managed meticulously without sacrificing raw output. The amaran Mini Fresnel & Barndoor Kit shatters traditional workflow constraints by offering elite cinematographers a paradigm shift in compact light modification. Engineered to handle the rigorous pacing of master-tier productions, this system delivers the punch, throw, and focus of large-scale studio fixtures within an ultra-portable footprint, ensuring absolute reliability when every second on set translates directly to production value.

At the core of this industry-disrupting tool is a high-grade 4.7-inch (12cm) precision-molded glass lens that offers an exceptional 15° to 30° variable spot-flood range. This state-of-the-art optical engineering results in a staggering 6x intensity amplification, elevating the raw power of full-color point-source fixtures to a phenomenal 42,600 lux at one meter. Crucially, this massive leap forward in brightness preserves the immaculate color science of underlying light engines, ensuring a completely flawless, smooth center-to-edge falloff with zero chromatic aberrations, fringing, or uneven hotspots across the entire beam.

Crafted with rigorous structural integrity, the lightweight yet rugged chassis integrates seamlessly into complex overhead rigs via a tool-less, full-size Bowens Mount interface. To guarantee complete mastery over this amplified illumination, the system features a professional-grade 4-leaf mini barndoor attachment. These ultra-matte, non-reflective leaves allow gaffers and studio managers to sculpt, trim, and cut light with mathematical accuracy, isolating subjects or splashing hard architectural cuts across a stage while completely eliminating unwanted spill.

Uncompromised Technical Specifications

• Optical Lens Element: 4.7-inch (12 cm) high-transmission, heavy-duty precision glass Fresnel lens

• Beam Angle Control: Step-less adjustable variable range from a tight 15° spot to a wide 30° flood

• Output Intensification: Delivers up to a 6x structural illumination boost over bare-bulb configurations

• Photometric Performance (at 1 Meter / 4300K at 15° Spot):

  • Paired with Ray 60c: Up to 23,790 lux

  • Paired with Ray 120c: Up to 42,600 lux

• Light Control Interface: Removable, fully adjustable heavy-duty 4-leaf Mini Barndoors

• Mounting Architecture: Standard full-size Bowens S-Type mount with quick-release tool-less lock

• Beam Profile Integrity: Uniform center-to-edge falloff with zero color shifting or optical fringing

• Physical Form Factor (Mini Fresnel): 18.7 x 14 cm (7.4 x 5.5 inches) cross-section

• Physical Form Factor (Mini Barndoors): 26.9 x 17.4 x 5.9 cm (10.6 x 6.9 x 2.3 inches)

• Ultra-Lightweight Structural Footprint: Mini Fresnel weighs 370 g (13.1 oz); Mini Barndoors weigh 180 g (6.3 oz)

• System Compatibility: Tailored specifically for Ray 60c and Ray 120c full-color COB fixtures

Professional Integration FAQ

"How does the amaran Mini Fresnel maintain pristine color rendering when dramatically magnifying light output?"

"Engineered with high-clarity, high-transmittance optical glass, the amaran Mini Fresnel & Barndoor Kit delivers a massive 6x boost in lux with zero color shift, perfectly preserving the underlying fixture's advanced color science and skin tone accuracy."

"Can this modifier system withstand continuous, high-heat operations on closed sets during extended 12-hour shooting days?"

"Built using advanced, thermally-stabilized composite materials, the amaran Mini Fresnel & Barndoor Kit easily tolerates prolonged heat exposure from continuous production cycles without warping, degradation, or mechanical failure."

"How does the mechanical spot-to-flood mechanism behave when making rapid, precision adjustments while rigged on set?"

"The precise helical twist-and-tighten architecture provides consistent fluid resistance across the 15° to 30° range, eliminating mechanical backlash or slipping even when the amaran Mini Fresnel & Barndoor Kit is mounted in precarious overhead positions."

"What level of beam shaping accuracy do the included 4-leaf barndoors provide when attempting to shield sensitive camera sensors from light spill?"

"The included professional-grade 4-leaf mini barndoors feature an ultra-matte, light-absorbing finish that locks securely at any angle, allowing gaffers to achieve razor-sharp beam cuts and absolute spill mitigation when utilizing the amaran Mini Fresnel & Barndoor Kit."
