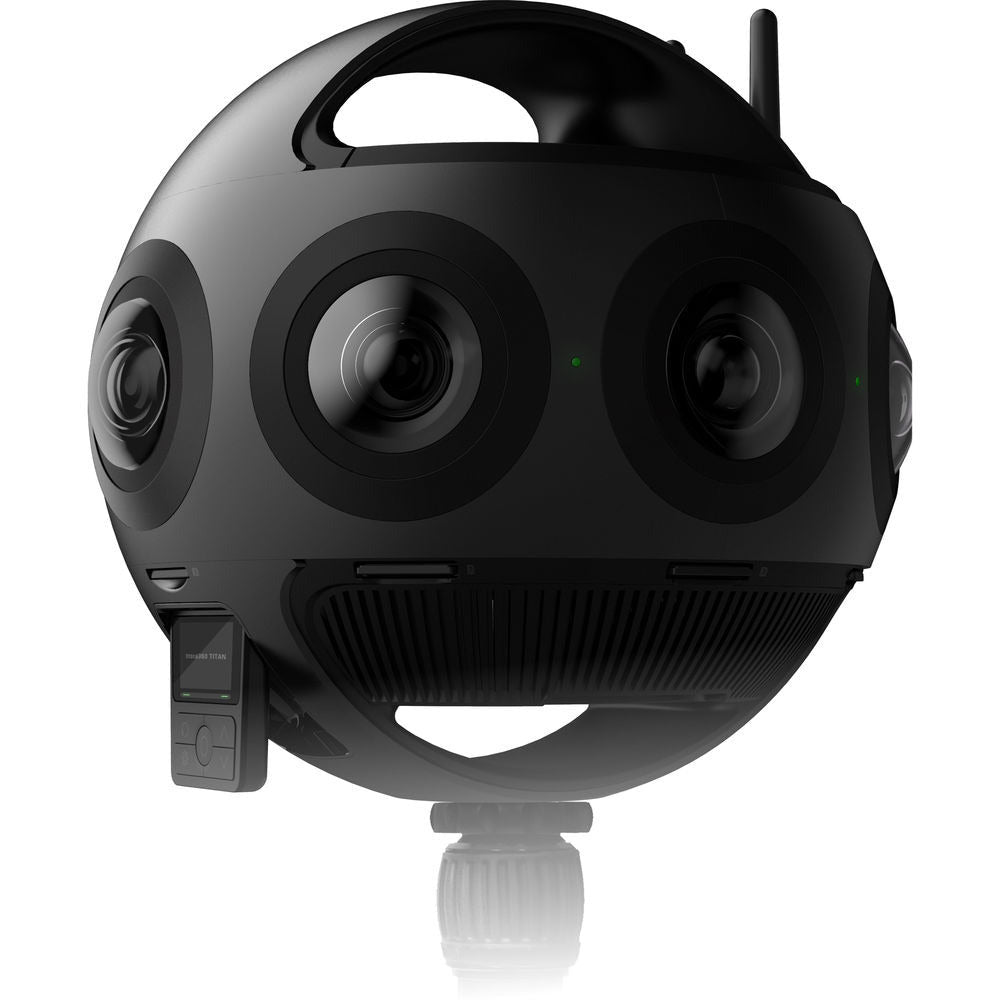

Insta360 Titan camera
The Insta360 Titan is a 11K resolution 2D and 3D 360/VR camera that captures 360/VR photo and video with 10-bit color and 9-axis stabilization. It has 8 Micro Four Thirds sensors, Wi-Fi control, FarSight remote monitoring, and can be edited stitch-free in Adobe Premiere Pro.
The Insta360 Titan has eight 200° fisheye lenses, adjustable shutter speed, and ISO range of 100 to 6400 for its optical features. It records 11K 2D video at 30 fps with H.265/H.264 compression and supports ProRes 422HQ after post-stitching. The camera also has HDR function for better lighting and high-speed frame rates up to 120 fps. In still mode, it offers options like raw, JPEG, DNG, burst, and time-lapse.
The FarSight transmitter/receiver system has a range of up to 984' on the ground or 3280' ground-to-air. The Wi-Fi signal can reach 65' in open areas and provide video preview up to 30 fps within 16'. The Titan has CrystalView function to convert 11K VR footage for viewing on VR headsets, smartphones, or monitors. It also supports live streaming up to 4K 2D with a built-in server that records simultaneously up to 6K 3D.
The Insta360 Titan has 9-axis gyro stabilization, which is customizable with the downloadable Insta360 software. It also has a built-in GPS module for precision mapping. The camera has 9 SD card slots, a compact aluminum frame, Ethernet port, and HDMI port for video output.
The Insta360 Titan has 8 Micro Four Thirds sensors, 11K 2D and 10K 3D video resolution, 11K 2D/3D photo resolution, and 8 f/3.2 fisheye lenses with 200° angle of view. It has a 12-stop exposure range with an ISO range of 100 to 6400 and multiple exposure, photo, and white balance modes. The camera has 9 SD card slots, recording in-camera with H264 and H265 and ProRes 422HQ post-processing options. The FarSight monitoring system has a ground range of up to 984' or 3280' ground-to-air. The camera also has HDR photo capture, 4 mono microphones for AAC ambisonic audio, 9-axis gyro, FlowState stabilization, Optical Flow, Wi-Fi, and live streaming capabilities with a built-in server. The battery is 10000mAh.
Insta360 Titan Specs
360 Stitched Video Recording
Stitching Resolution 11K (Video)
11K (Photo)
Internal/External Stitching External Stitching
Supported Spherical Projection Types Fisheye
360 Stitched Video Format External 2D:
10560 x 5280 at 30 fps (180 Mb/s MP4 via H.265)
External 3D:
9600 x 9600 at 30 fps (180 Mb/s MP4 via H.265)
External:
5280 x 2640 at 120 fps (180 Mb/s MP4 via H.264)
External 3D:
7680 x 7680 at 30 fps (180 Mb/s MP4 via H.264)
External 2D:
3840 x 1920 at 30 fps (180 Mb/s MP4 via H.264)
Internal 3D:
3840 x 3840 at 30 fps (180 Mb/s MP4 via H.264)
Internal 2D:
3840 x 1920 at 30 fps (180 Mb/s MP4 via H.264)
Still Image Support JPEG
(10,560 x 10,560)
JPEG
(10,560 x 5280)
DNG
(10,560 x 10,560)
DNG
(10,560 x 5280)
Number of Lenses 8
Camera per Lens
Sensor Type CMOS Sensor
Optics per Lens
Angle of View Wide: 200°
Recording
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC
Per Sensor: SD/SDHC/SDXC
Built-In Mic Yes
Audio Format AAC
Exposure Control
Burst Photo 10
Features
Wi-Fi Yes, Wi-Fi 4 (802.11n)
Input/Output Connectors
Outputs 1 x RJ45
1 x HDMI (Unspecified)
General
Battery Rechargeable Lithium-Ion Battery Pack, 10,000 mAh
Charging Method AC Adapter
Power Adapter 19 VDC
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions (W x H x D) 9.2 x 9.2 x 9.2" / 233.7 x 233.7 x 233.7 mm
Packaging Info
Package Weight 37.78 lb
Box Dimensions (LxWxH) 23.7 x 16.9 x 12"
Insta360 Farsight Wireless Control System for Pro 2 and Pro VR/360 Cameras
Protective Lens Cover
10000mAh Battery
2 x Antenna
USB 2.0 to Ethernet Adapter
1/4"-20 to 1/4"-20 Adapter
USB Type-C Cable
AC Adapter
AC Charging Cable
Case
Limited 1-Year Warranty
