●3G-SDI
Support 3G-SDI, max support to 1080@60fps uncompression original video signal, and compatibility all HD-SDI format.
●Completely New Look
Designed with worm gear drive, completely new look, mini size, two colors for choosing from.
●1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
●Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
●72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.
●Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.
●AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
●Infrared passthrough
Camera is capable of receiving signal from the infrared remote controller, and pass through to the back-end equipment (ex. video conferencing terminal) via VISCA IN connector. Convenient back-end equipment is hidden in the cabinet.

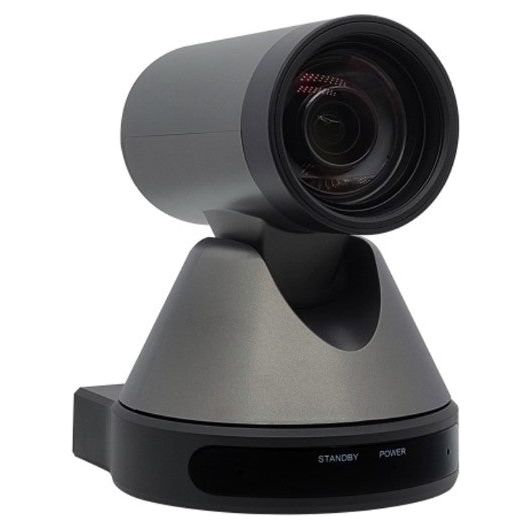

G607VH -SP12X

Name: HD Video Conference Camera

Category	Specifications
Video System	1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50
Sensor	1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode	Progressive
Lens	12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom	16x
Minimal Illumination	0.5 Lux @ (F1.8, AGC ON)
Shutter	1/30s ~ 1/10000s
White Balance	Auto, Indoor, Outdoor, One Push, Manual, VAR(2500K~8000K)
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital Noise Reduction
Video S/N	≥55dB
Horizontal Angle of View	72.5° ~ 6.9°
Vertical Angle of View	44.8° ~ 3.9°
Horizontal Rotation Range	±170°
Vertical Rotation Range	-30° ~ +30°
Pan Speed Range	1.7° ~ 100°/s
Tilt Speed Range	0.7° ~ 28°/s
H & V Flip	Support
Image Freeze	Support
Number of Preset	255
Preset Accuracy	0.1°
Video Compression	H.265 / H.264 / MJEPG
Video Stream	Main Stream, Sub Stream
Main Stream Resolution	1920x1080, 1280x720, 1024x576 etc.
Sub Stream Resolution	720x576, 720x480, 320x240 etc.
Video Bit Rate	32Kbps ~ 20480Kbps
Bit Rate Type	Variable Rate, Fixed Rate
Frame Rate	50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
Audio Compression	AAC
Audio Bit Rate	96Kbps, 128Kbps, 256Kbps
Support protocols	TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
HD Output	1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
Audio Interface	1-ch: 3.5mm Audio Interface, Line In
Network Interface	1xRJ45: 10M/100M Ethernet Interface
Communication Interface	1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack	JEITA type (DC IN 12V)
Input Voltage	DC 12V
